Powered by a WEICHAI WP10G240E341 diesel engine with 6 cylinders and 9.726L large displacement, rated output of 178 kW at 2200 rpm and peak torque of up to 1200 N·m at 1400–1600 rpm.
| Total weight | 21,700±300 kg |
|---|---|
| Rated bucket capacity | 3.5 m³ |
| Engine brand | WEICHAI |
| Output power | 178 kW / 2200 rpm |
6-ton rated load + high traction + 38 km/h high-speed relocation for high-intensity earth transfer, foundation backfilling, and site grading on large water conservancy, infrastructure, and highway projects.
Standard 3.5 m³ extra-large bucket with 6000 kg rated load and 21700 kg operating weight. Optional 3.8 m³ rock bucket, 4.2 m³ gravel bucket, and 5.0/5.6 m³ coal buckets flexibly suit different material densities and conditions.
Overall dimensions 8700×3050×3510 mm, 3400 mm wheelbase, 512 mm min ground clearance — large body with extreme load capacity, high ground clearance, good flotation, and convenient relocation on large sites and mines.

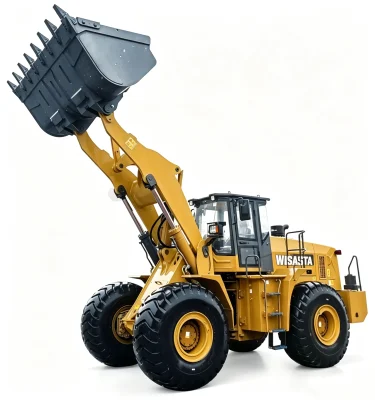

| Model | WTSL61W |
|---|---|
| Machine type | Wheel Loader |
| Operating weight | 21,700±300 kg |
| Bucket capacity | 3.5 m³ |
| Engine brand | WP10G240E341 |
| Rated power | 178 kW / 2,200 rpm |
| Maximum lifting position of the bucket | 6,129 mm |
| Maximum lifting position (bucket) | 48.6 ° |
| Wheelbase | 3,400 mm |
| Fuel tank capacity | 330 L |
| Hydraulic system pressure | 16 MPa |
| Overall dimensions | 8,700×3,050×3,510 mm |
WISASTA — premium construction & mining machinery.
WISASTA — premium construction & mining machinery.
Review job-site suitability, lead time, after-sales coverage and configuration flexibility in one consolidated overview before you request a formal quotation.
Ideal for landscaping, municipal maintenance, agriculture and narrow-access projects. Compact footprint delivers stable, reliable control.
Lead time varies by order quantity and unit configuration. Standard configurations ship faster, while custom-spec machines require extended production and QC procedures.
Support package includes remote troubleshooting, maintenance guidance and critical spare-parts coordination to minimize unexpected downtime.
Attachments and selected specifications can be tailored to local compliance standards, operator preferences and project requirements.
Need landed cost, ETA and attachment recommendations? Share your project details to receive a faster, more accurate quotation.
