2.7 m³ standard bucket + optional 3.0 m³ enlarged bucket for loading, stockpiling, and ship feeding of coal, ore, and grain at coal mines, coal yards, and ports.
| Total weight | 15,800±300 kg |
|---|---|
| Rated bucket capacity | 2.7 m³ |
| Engine brand | WEICHAI |
| Output power | 162 kW / 2200 rpm |
5-ton rated load + high traction for high-intensity earth transfer, foundation backfilling, and gravel-yard loading on large construction sites.
Powered by a WEICHAI WD10G220E21 diesel engine with 6 cylinders and 9.726L large displacement, rated output of 162 kW at 2200 rpm and peak torque of 860 N·m at 1400–1600 rpm. Strong low-end torque delivers powerful heavy-duty loading.
±35° steering angle, 6182 mm min turning radius (outside tire), and 2930 mm wheelbase keep the 5-ton class machine agile for efficient operation in confined spaces.

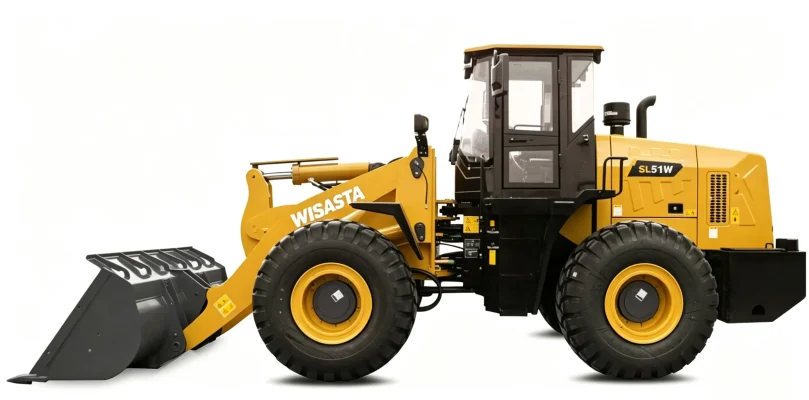

| Model | WTSL51W |
|---|---|
| Machine type | Wheel Loader |
| Operating weight | 15,800±300 kg |
| Bucket capacity | 2.7 m³ |
| Engine brand | WEICHAI |
| Rated power | 162 kW / 2,200 rpm |
| Maximum lifting position of the bucket | 5,210 mm |
| Maximum lifting position (bucket) | 50 ° |
| Wheelbase | 2,930 mm |
| Fuel tank capacity | 280 L |
| Hydraulic system pressure | 16 MPa |
| Overall dimensions | 7,760×3,000×3,380 mm |
WISASTA — premium construction & mining machinery.
WISASTA — premium construction & mining machinery.
Review job-site suitability, lead time, after-sales coverage and configuration flexibility in one consolidated overview before you request a formal quotation.
Ideal for landscaping, municipal maintenance, agriculture and narrow-access projects. Compact footprint delivers stable, reliable control.
Lead time varies by order quantity and unit configuration. Standard configurations ship faster, while custom-spec machines require extended production and QC procedures.
Support package includes remote troubleshooting, maintenance guidance and critical spare-parts coordination to minimize unexpected downtime.
Attachments and selected specifications can be tailored to local compliance standards, operator preferences and project requirements.
Need landed cost, ETA and attachment recommendations? Share your project details to receive a faster, more accurate quotation.
