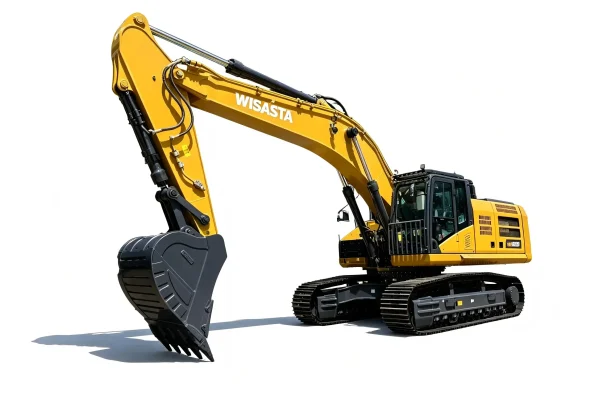

WISASTA WTE400E-3H large-scale mining excavator comes with heavy-duty reinforced structure, built for harsh mine sites, rock excavation and high-intensity mass earth-moving operations. It is engineered to deliver powerful digging force and outstanding operational stability under arduous quarrying and mineral-mining assignments.
| Total weight | 39,200kg |
|---|---|
| Rated bucket capacity | 2.0-2.2 m³ |
| Engine brand | Cummins |
| Output power | 241 kW / 2000 rpm |
Perfect for mining operators undertaking rock breaking, ore loading and heavy-duty earth-moving projects.
Heavy-duty reinforced structure engineered for rock excavation and high-intensity mass earth-moving operations.
Delivers powerful digging force and outstanding operational stability under arduous quarrying and mineral-mining assignments.
| Model | WTE400E-3H |
|---|---|
| Machine type | Large mining hydraulic excavator |
| Operating weight | 39,200 kg |
| Bucket capacity | 2.0 - 2.2 m³ |
| Engine brand | Cummins |
| Rated power | 241 kW / 2,000 rpm |
| Max. digging depth | 6,855 mm |
| Max. digging reach | 10,715 mm |
| Max. digging force (bucket) | 348 kN |
| Travel speed | 6.2 / 3.6 km/h |
| Swing speed | 10.2 rpm |
| Fuel tank capacity | 650 L |
| Hydraulic system pressure | 34.3 MPa |
| Overall dimensions (L×W×H) | 11,235 × 3,340 × 3,600 mm |
| Emission standard | China IV / Euro V (optional) |
WISASTA — premium construction & mining machinery.
WISASTA — premium construction & mining machinery.
Review job-site suitability, lead time, after-sales coverage and configuration flexibility in one consolidated overview before you request a formal quotation.
Ideal for landscaping, municipal maintenance, agriculture and narrow-access projects. Compact footprint delivers stable, reliable control.
Lead time varies by order quantity and unit configuration. Standard configurations ship faster, while custom-spec machines require extended production and QC procedures.
Support package includes remote troubleshooting, maintenance guidance and critical spare-parts coordination to minimize unexpected downtime.
Attachments and selected specifications can be tailored to local compliance standards, operator preferences and project requirements.
Need landed cost, ETA and attachment recommendations? Share your project details to receive a faster, more accurate quotation.
