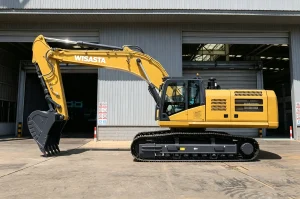

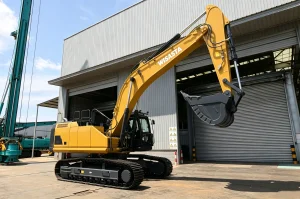

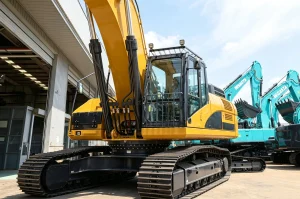

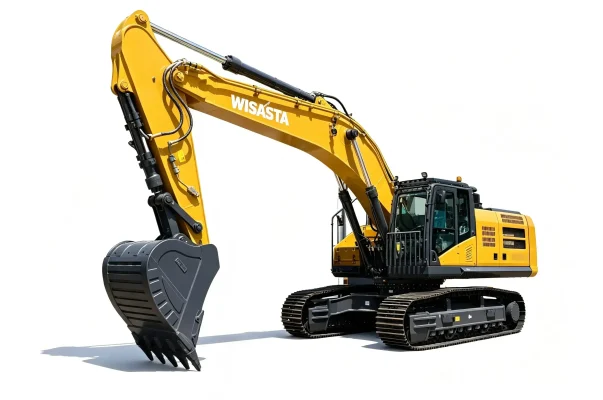

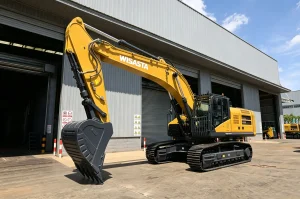

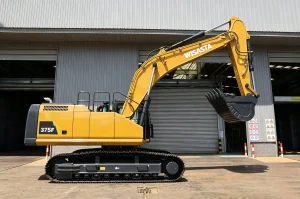

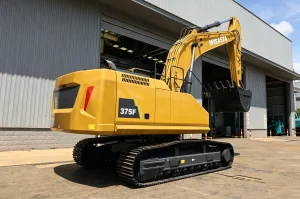

The WISASTA WTE375F is a 37.5-ton large hydraulic excavator engineered for heavy-load mining operations. Powered by a 212 kW ISUZU common-rail engine and twin variable plunger pumps, it delivers 307 kN bucket digging force and 1.8–2.0 m³ bucket capacity, with a mining-grade drivetrain built for 20,000-hour reliability.
| Total weight | 37,500 kg |
|---|---|
| Rated bucket capacity | 1.8-2.0 m³ |
| Engine brand | ISUZU |
| Output power | 212 kW/ 2000 rpm |
High‑efficiency and energy‑saving hydraulic system configuration; proprietary matching technology with independent intellectual property rights.
The internationally renowned brand Isuzu AE-6HK1X engine offers excellent fuel adaptability and is easy to maintain.
The system features a heavy‑duty 6.5m boom and a heavy‑duty 2.9m dipper arm, ensuring high reliability.
Standard 1.8‑cubic‑meter hyperbolic rock bucket design delivers greater excavation power for its class.
| Model | WTE375F |
|---|---|
| Machine type | Large mining hydraulic excavator |
| Operating weight | 37,500 kg |
| Bucket capacity | 1.8 - 2.0 m³ |
| Engine brand | Cummins |
| Rated power | 212 kW / 2,000 rpm |
| Max. digging depth | 7,100 mm |
| Max. digging reach | 10,9315 mm |
| Max. digging force (bucket) | 307 kN |
| Travel speed | 6.2 / 3.6 km/h |
| Swing speed | 9.1 rpm |
| Fuel tank capacity | 700 L |
| Hydraulic system pressure | 34.3 MPa |
| Overall dimensions (L×W×H) | 11,370 × 3,190 × 3,630 mm |
| Emission standard | China IV / Euro V (optional) |
WISASTA — premium construction & mining machinery.
WISASTA — premium construction & mining machinery.
Review job-site suitability, lead time, after-sales coverage and configuration flexibility in one consolidated overview before you request a formal quotation.
Ideal for landscaping, municipal maintenance, agriculture and narrow-access projects. Compact footprint delivers stable, reliable control.
Lead time varies by order quantity and unit configuration. Standard configurations ship faster, while custom-spec machines require extended production and QC procedures.
Support package includes remote troubleshooting, maintenance guidance and critical spare-parts coordination to minimize unexpected downtime.
Attachments and selected specifications can be tailored to local compliance standards, operator preferences and project requirements.
