WTE335F features powerful digging force, large‑capacity bucket, high‑efficiency energy‑saving hydraulic system and heavy‑duty durable chassis. It is suitable for urban infrastructure earthwork, as well as heavy‑duty applications including light mining and rock material handling.
| Total weight | 32,800 kg |
|---|---|
| Rated bucket capacity | 1.6 m³ |
| Engine brand | ISUZU |
| Output power | 212 kW/ 2000 rpm |

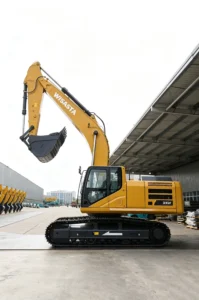

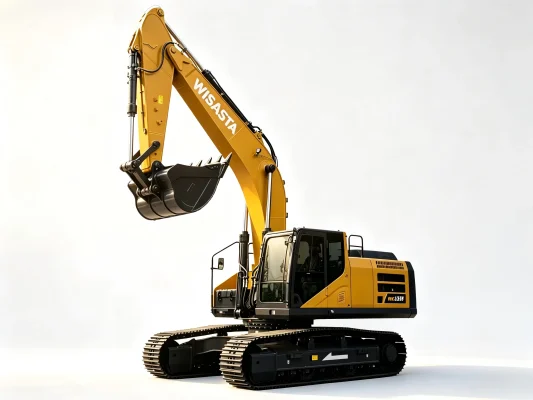

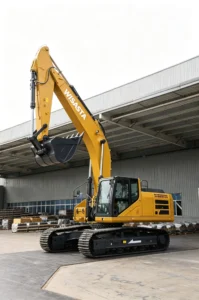

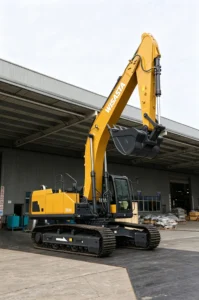

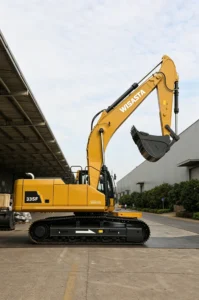

WTE335F is a 33‑ton heavy‑duty export‑oriented crawler excavator. Delivering abundant power, strong digging force and high‑efficiency hydraulics. Reinforced front attachment and undercarriage ensure reliability in tough site conditions. It is a main‑stream medium‑large machine for high‑output earthwork, infrastructure and light‑mining projects.
The machine is equipped with a 212kW Isuzu engine, delivering robust power output.
The hydraulic system features high efficiency and energy‑saving performance, delivering a bucket excavation force of 214 kN, making it easily capable of handling heavy‑duty operations.
Efficient and large displacement hydraulic system configuration, supported by 2.9 m short boom and 1.7 m³ large bucket capacity hyperbolic reinforced bucket, to achieve perfect matching of working devices according to working conditions.
| Model | WTE335F |
|---|---|
| Machine type | Large mining hydraulic excavator |
| Operating weight | 32,800 kg |
| Bucket capacity | 1.6 m³ |
| Engine brand | ISUZU |
| Rated power | 212 kW / 2,000 rpm |
| Max. digging depth | 7,010 mm |
| Max. digging reach | 10,570 mm |
| Max. digging force (bucket) | 297 kN |
| Travel speed | 5.8 / 4 km/h |
| Swing speed | 11.7 rpm |
| Fuel tank capacity | 520 L |
| Hydraulic system pressure | 34.3 MPa |
| Overall dimensions (L×W×H) | 10,616 × 3,190 × 3,600 mm |
| Emission standard | China IV / Euro V (optional) |
