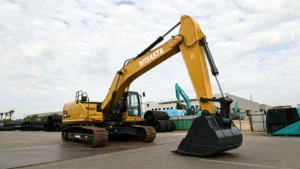

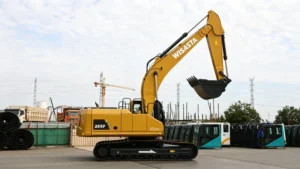

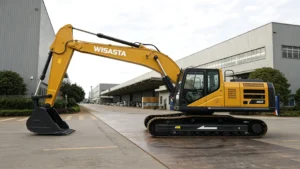

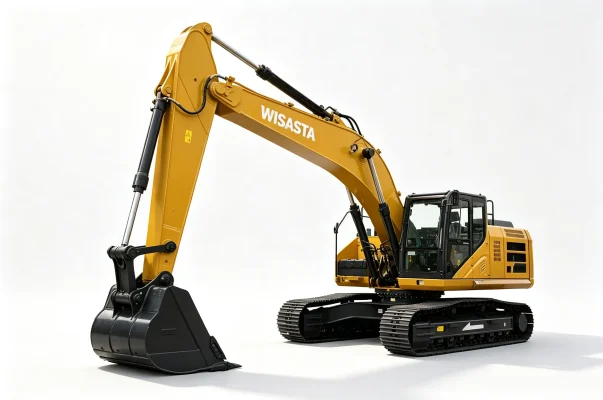

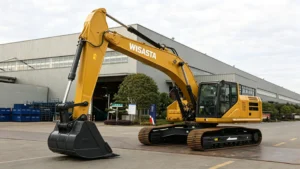

WE265F is a 27.3-ton medium hydraulic excavator powered by a high-output Cummins QSB7 engine, delivering strong power and ample torque.
| Total weight | 27,300 kg |
|---|---|
| Rated bucket capacity | 1.6 m³ |
| Engine brand | Cummins |
| Output power | 169 kW / 2050 rpm |
Large bucket + high digging force for efficient foundation excavation, site grading, and earth transfer.Wide working range + deep digging capability for river dredging, dam construction, and large-scale foundation excavation.
Powered by a Cummins QSB7 diesel engine with 6.7L displacement, rated output of 169 kW at 2050 rpm, and peak torque of 895 N·m at 1200–1700 rpm. Abundant low-end torque prevents engine stall under heavy loads
Equipped with high-flow hydraulic core components, delivering low pressure loss and high energy efficiency. Faster response, reduced fuel consumption and heat generation.
| Model | WTE265F |
|---|---|
| Machine type | Medium mining hydraulic excavator |
| Operating weight | 27,300 kg |
| Bucket capacity | 1.6 m³ |
| Engine brand | Cummins |
| Rated power | 169 kW / 2,0500 rpm |
| Max. digging depth | 7,030mm |
| Max. digging reach | 10,370 mm |
| Max. digging force (bucket) | 234 kN |
| Travel speed | 5.8 / 3.5 km/h |
| Swing speed | 10.7 rpm |
| Fuel tank capacity | 450 L |
| Hydraulic system pressure | 31.4 MPa |
| Overall dimensions (L×W×H) | 10,195 × 3,190 × 3,330 mm |
| Emission standard | China IV / Euro V (optional) |
WISASTA — premium construction & mining machinery.
WISASTA — premium construction & mining machinery.
Review job-site suitability, lead time, after-sales coverage and configuration flexibility in one consolidated overview before you request a formal quotation.
Ideal for landscaping, municipal maintenance, agriculture and narrow-access projects. Compact footprint delivers stable, reliable control.
Lead time varies by order quantity and unit configuration. Standard configurations ship faster, while custom-spec machines require extended production and QC procedures.
Support package includes remote troubleshooting, maintenance guidance and critical spare-parts coordination to minimize unexpected downtime.
Attachments and selected specifications can be tailored to local compliance standards, operator preferences and project requirements.
Need landed cost, ETA and attachment recommendations? Share your project details to receive a faster, more accurate quotation.
