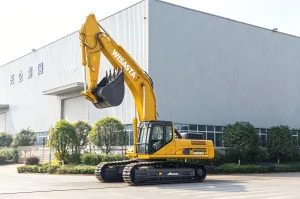

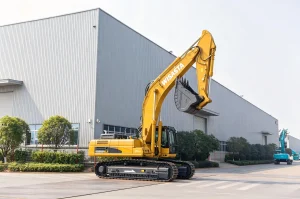

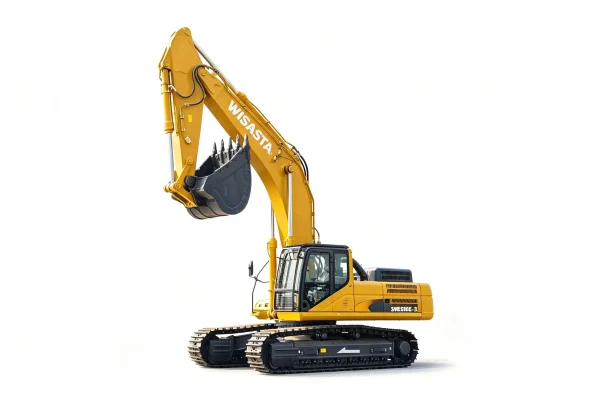

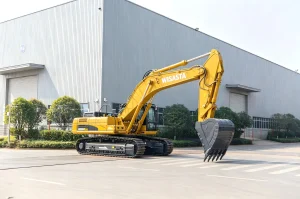

WISASTA WTE500E-3 is a 49-ton large hydraulic excavator powered by a Cummins QSM11 engine
| Total weight | 49,000 kg |
|---|---|
| Rated bucket capacity | 2.6-2.8m³ |
| Engine brand | Cummins |
| Output power | 280 kW /2000 rpm |
WTE500E energy-saving hydraulic system with independent cooling technology ensures low fuel consumption and high efficiency.
Powered by a Cummins QSM11 engine, delivering robust and reliable performance.
Five major structural parts, a mining-grade heavy-duty build and a 20,000-hour reliability design for high-altitude and harsh environments.
| Model | WTE500E |
|---|---|
| Machine type | Large mining hydraulic excavator |
| Operating weight | 49,000 kg |
| Bucket capacity | 2.6 - 2.8 m³ |
| Engine brand | Cummins |
| Rated power | 280 kW / 2,000 rpm |
| Max. digging depth | 6,850 mm |
| Max. digging reach | 11,115 mm |
| Max. digging force (bucket) | 409 kN |
| Travel speed | 4.83 / 3.0 km/h |
| Swing speed | 8.6 rpm |
| Fuel tank capacity | 690 L |
| Hydraulic system pressure | 34.3 MPa |
| Overall dimensions (L×W×H) | 11,450 × 3,478 × 4,000 mm |
| Emission standard | China IV / Euro V (optional) |
WISASTA — premium construction & mining machinery.
WISASTA — premium construction & mining machinery.
Review job-site suitability, lead time, after-sales coverage and configuration flexibility in one consolidated overview before you request a formal quotation.
Ideal for landscaping, municipal maintenance, agriculture and narrow-access projects. Compact footprint delivers stable, reliable control.
Lead time varies by order quantity and unit configuration. Standard configurations ship faster, while custom-spec machines require extended production and QC procedures.
Support package includes remote troubleshooting, maintenance guidance and critical spare-parts coordination to minimize unexpected downtime.
Attachments and selected specifications can be tailored to local compliance standards, operator preferences and project requirements.
Need landed cost, ETA and attachment recommendations? Share your project details to receive a faster, more accurate quotation.
