Large-size Mining Excavator

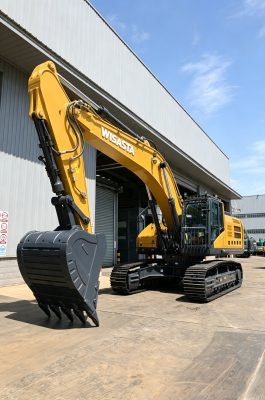

Large-size Mining Excavator WTE385F
WTE385F
WISASTA WTE385F large-scale mining excavator comes with heavy-duty reinforced structure, built for harsh mine sites, rock excavation and high-intensity mass earth-moving operations. It is engineered to deliver powerful digging force and outstanding operational stability under arduous quarrying and mineral-mining assignments.
| Total weight | 38,500 kg |
|---|---|
| Rated bucket capacity | 1.9 m³ |
| Engine brand | Cummins |
| Output power | 210 kW / 1900 rpm |
Specifications:
Perfect for mining operators undertaking rock breaking, ore loading and heavy-duty earth-moving projects.
Key Features
Built for Harsh Mine Sites
Heavy-duty reinforced structure engineered for rock excavation and high-intensity mass earth-moving operations.
Powerful and Stable
Delivers powerful digging force and outstanding operational stability under arduous quarrying and mineral-mining assignments.
| Model | WTE385F |
|---|---|
| Machine type | Large-size mining excavator |
| Operating weight | 38,500 kg |
| Bucket capacity | 1.6 – 2.2 m³ (standard 1.9 m³) |
| Engine brand | Cummins |
| Rated power | 210 kW / 1900 rpm |
| Max. digging depth | 6,700 mm |
| Max. digging reach | 10,300 mm |
| Max. digging force (bucket) | 225 kN |
| Travel speed | 3.4 / 5.5 km/h |
| Swing speed | 9.5 rpm |
| Fuel tank capacity | 600 L |
| Hydraulic system pressure | 34.3 MPa |
| Overall dimensions (L×W×H) | 10,900 × 3,200 × 3,300 mm |
| Emission standard | China IV / Euro V (optional) |
WISASTA — premium construction & mining machinery.
ATTACHMENT OPTIONS
Rock-breaker
Quick Coupler
Auger
Ripper Tooth
WISASTA — premium construction & mining machinery.
Make your procurement decisions with full clarity, no guesswork
Review job-site suitability, lead time, after-sales coverage and configuration flexibility in one consolidated overview before you request a formal quotation.
APPLICATION | Best-fit applications
Ideal for landscaping, municipal maintenance, agriculture and narrow-access projects. Compact footprint delivers stable, reliable control.
TIMELINE | Production & shipping window
Lead time varies by order quantity and unit configuration. Standard configurations ship faster, while custom-spec machines require extended production and QC procedures.
AFTER-SALES | Warranty & support scope
Support package includes remote troubleshooting, maintenance guidance and critical spare-parts coordination to minimize unexpected downtime.
CONFIGURATION | Options & localization
Attachments and selected specifications can be tailored to local compliance standards, operator preferences and project requirements.
Need landed cost, ETA and attachment recommendations? Share your project details to receive a faster, more accurate quotation.
